1 inch Globe Valve Class 2500 Pressure Sealed Bonnet and BW end

Short Description:

Explore the engineering excellence of 1 inch Class 2500 Globe Valve featuring Pressure Sealed Bonnet technology and BW connections, forged steel valve.


Product Detail

Product Tags

1 inch Globe Valve Class 2500 Pressure Sealed Bonnet Standard

Design & manufacture API 602, ASME B16.34, BS 5352
Face-to-face MFG’S
End Connection - Flange Ends to ASME B16.5
  - Socket Weld Ends to ASME B16.11
  - Butt Weld Ends to ASME B16.25
  - Screwed Ends to ANSI/ASME B1.20.1
Test & inspection API 598
Fire safe design API 6FA
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
Other PMI, UT, RT, PT, MT

Design Features of 1 inch Globe Valve Class 2500 Pressure Sealed Bonnet

Pressure Sealed Bonnet Construction

Sealing Mechanism: Utilizes a pressure-energized bonnet design where system pressure compresses a metallic Graphite-Stainless Steel Spiral Wound Gasket between the bonnet and body, enhancing sealing integrity as internal pressure rises.

Material: Forged steel body (ASTM A105) with extended Stellite 6 hard-faced trim for erosion resistance in high-velocity flow applications.

Bonnet Bolting: No external bolts; relies on a self-adjusting gland follower and tapered wedge system to maintain uniform gasket compression under thermal cycling.

End Connections: Butt weld (BW) ends per ASME B16.25, ensuring full penetration weld compatibility with high-pressure piping systems.

Critical Components

Stem Design: Non-rising rotating stem with integral backseat for dual sealing during full-open positions.

Disc & Seat: Conical disc-to-seat geometry with 30° tapered seating surfaces, achieving Class V shutoff per API 598.

Packing System: Live-loaded Flexible Graphite Packing reinforced by a lantern ring for steam/chemical service up to 1000°F (540°C).

How 1 inch Globe Valve Class 2500 Pressure Sealed Bonnet Works

Working Principle

1. Flow Regulation: Linear motion of the disc (driven by a handwheel or actuator) modulates flow by altering the annular space between the disc and seat.

2. Pressure-Activated Sealing:

- At ambient conditions, initial gasket compression is achieved via the gland follower.

- As system pressure increases (up to 2500 PSI), fluid pressure acts on the bonnet’s tapered surface, forcing the gasket into tighter contact with the body-bonnet interface.

3. Thermal Compensation: During temperature fluctuations, thermal expansion of the bonnet assembly maintains consistent gasket load, preventing leakage.

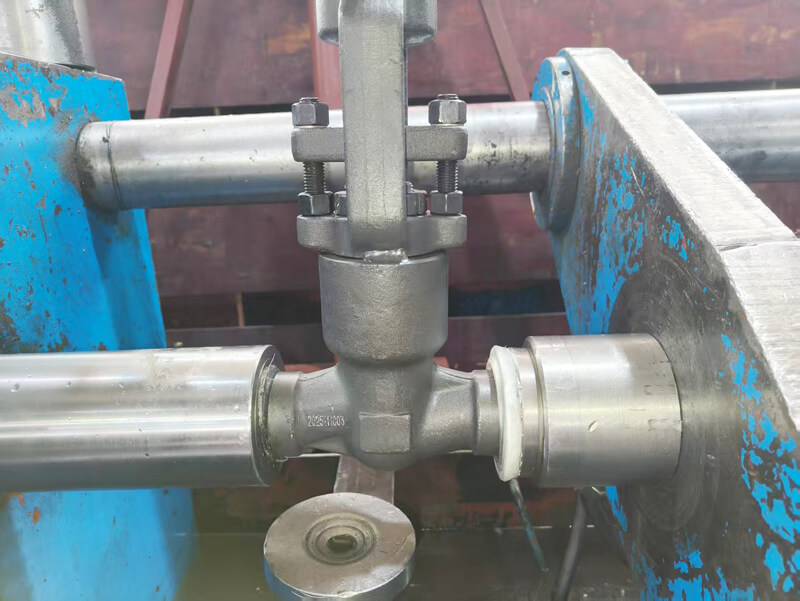

1 inch Globe Valve Class 2500 Pressure Sealed Bonnet-Pressure Test

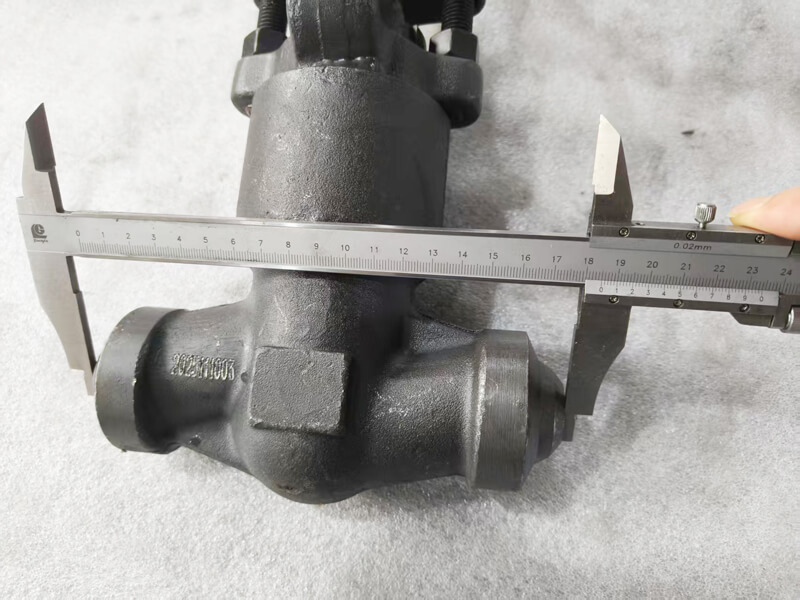

1 inch Globe Valve Class 2500 Pressure Sealed Bonnet- Fac to Face Dimension

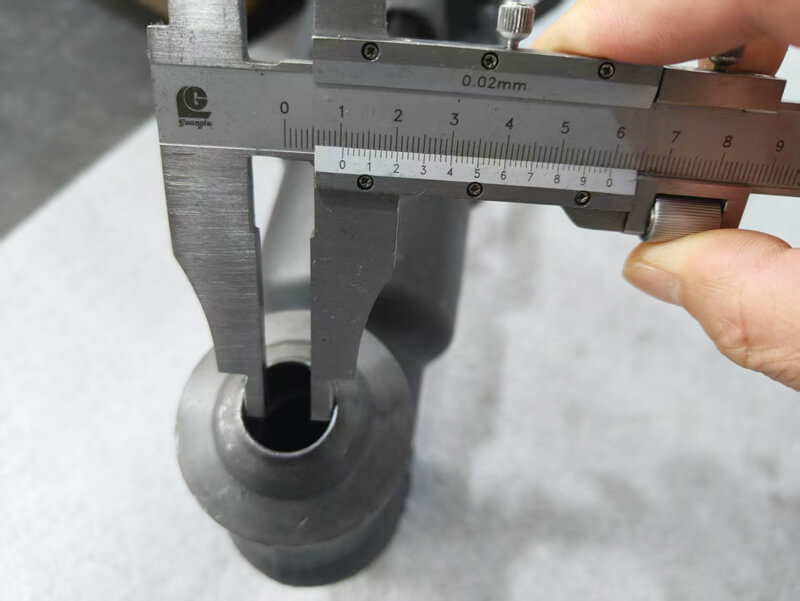

1 inch Globe Valve BW end Class 2500 Pressure Sealed Bonnet-Inner Dimension

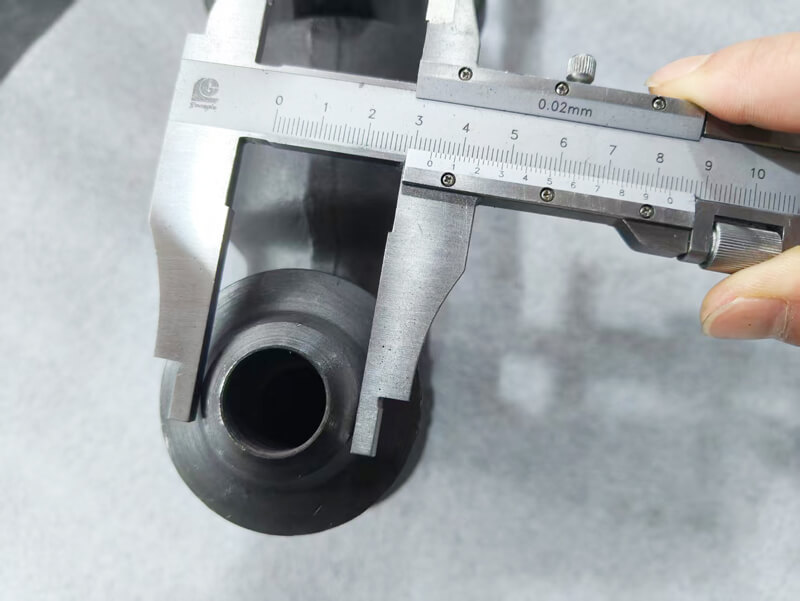

1 inch Globe Valve Class 2500 Pressure Sealed Bonnet-BW end

Advantage of 1 inch Globe Valve Class 2500 Pressure Sealed Bonnet

Zero-Leakage Performance:

- Pressure-assisted sealing ensures leak-free operation even under extreme thermal/pressure cycling (per API 602).

- Stellite-coated trim resorts to erosion in steam/condensate applications.

Durability in Harsh Conditions:

Forged steel construction withstands water hammer and cyclic stresses in power plant turbine bypass systems.

BW ends eliminate flange leakage risks common in Class 2500 services.

Maintenance Efficiency:

Self-compensating bonnet eliminates bolt re-torquing during operation.

Live-loaded packing reduces fugitive emissions (compliant with ISO 15848-1).

Versatility:

Suitable for superheated steam, hydrocarbon processing, and high-pressure boiler feedwater systems.

Optional bellows seal or extended bonnet for cryogenic or high-temperature vertical installations.

Source Forged Steel Valve Factory:

NSW is a Leader of Forged Steel Valve Manufacturer in China, we have automated processing equipment and sophisticated testing equipment to ensure that you can purchase high performance valves product.
