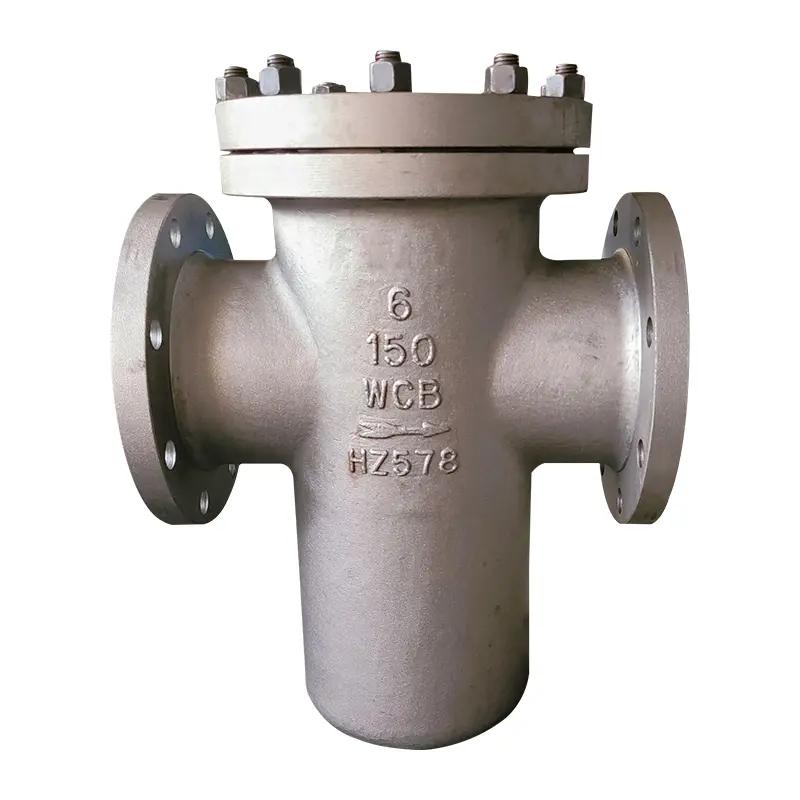

Basket Strainer
✧ Description
The basket filter is used for oil or other liquid pipelines to filter the debris in the pipeline, and the filter hole area is greater than 2-3 times the diameter pipe area, which is far more than the filter area of Y and T filters. Filter accuracy in the filter belongs to a filter with the best accuracy, the filter structure is different from other filters, because the shape is like a basket, so the name basket filter.
The basket filter is mainly composed of nozzle, barrel, filter basket, flange, flange cover and fastener. Installed on the pipeline can remove large solid impurities in the fluid, so that the machine equipment (including compressors, pumps, etc.), instruments can work and operate normally, to stabilize the process and ensure the role of safe production.
Blue filter is a small device to remove a small amount of solid particles in the liquid, which can protect the normal work of compressors, pumps, meters and other, when the fluid enters the filter bucket with a certain specification of the filter screen, its impurities are blocked, and the clean filtrate is discharged by the filter outlet, when it needs to be cleaned, as long as the detachable filter bucket is removed, and the process is re-loaded, so, Easy to use and maintain. It has been widely used in petroleum, chemical, pharmaceutical, food, environmental protection and other industries. If it is installed in series at the pump inlet or other parts of the system pipeline, it can extend the service life of the pump and other equipment, and ensure the safety of the entire system.
✧ Features of Basket Strainer
1. basket filter using special weaving methods made of ultra-fine synthetic fiber, to avoid the old glass fiber material may cause discomfort to the human body.
2. basket filter filter material contains electrostatic fiber, sub-micron (1 micron or 1 micron) less than 1 micron) dust filtration efficiency is particularly good, with high dust capture, high dust load and high permeability. High service life.
3. basket filter each filter bag is fixed with a metal strip, which increases the strength of the filter element and prevents the filter bag from breaking due to wind shear friction at high wind speed.
4. basket filter each filter bag has six spacers, the width of which is evenly distributed in the width of the bag to prevent the bag from excessive expansion and mutual obstruction due to wind pressure, thereby reducing the effective filtration area and efficiency.
✧ Parameters of Basket Strainer
| Product | Basket Strainer |
| Nominal diameter | NPS 2”, 3”, 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20”, 24”, 28”, 32”, 36”, 40”, 48” |
| Nominal diameter | Class 150, 300, 600, 900, 1500, 2500. |
| End Connection | Flanged (RF, RTJ), BW, PE |
| Operation | None |
| Materials | A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A, Inconel, Hastelloy, Monel |
| Structure | Full or Reduced Bore, |
| RF, RTJ, BW or PE, | |
| Side entry, top entry, or welded body design | |
| Double Block & Bleed (DBB)，Double Isolation & Bleed (DIB) | |
| Emergency seat and stem injection | |
| Anti-Static Device | |
| Design and Manufacturer | ASME B16.34 |
| Face to Face | ASME B16.10 |
| End Connection | BW (ASME B16.25) |
| MSS SP-44 | |
| RF, RTJ (ASME B16.5, ASME B16.47) | |
| Test and Inspection | API 6D, API 598 |
| Other | NACE MR-0175, NACE MR-0103, ISO 15848 |
| Also available per | PT, UT, RT,MT. |
| Fire safe design | API 6FA, API 607 |
| Product | Y Strainer |
| Nominal diameter | NPS 2”, 3”, 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20”, 24”, 28”, 32”, 36”, 40”, 48” |
| Nominal diameter | Class 150, 300, 600, 900, 1500, 2500. |
| End Connection | Flanged (RF, RTJ), BW, PE |
| Operation | None |
| Materials | Forged: A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5 |
| Casting: A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A, Inconel, Hastelloy, Monel | |
| Structure | Full or Reduced Bore, |
| RF, RTJ, BW or PE, | |
| Side entry, top entry, or welded body design | |
| Double Block & Bleed (DBB)，Double Isolation & Bleed (DIB) | |
| Emergency seat and stem injection | |
| Anti-Static Device | |
| Design and Manufacturer | API 6D, API 608, ISO 17292 |
| Face to Face | API 6D, ASME B16.10 |
| End Connection | BW (ASME B16.25) |
| MSS SP-44 | |
| RF, RTJ (ASME B16.5, ASME B16.47) | |
| Test and Inspection | API 6D, API 598 |
| Other | NACE MR-0175, NACE MR-0103, ISO 15848 |
| Also available per | PT, UT, RT,MT. |
| Fire safe design | API 6FA, API 607 |
✧ After Sale Service
The after-sales service of the floating ball valve is very important, because only timely and effective after-sales service can ensure its long-term and stable operation. The following are the after-sales service contents of some floating ball valves:
1.Installation and commissioning: After-sales service personnel will go to the site to install and debug the floating ball valve to ensure its stable and normal operation.
2.Maintenance: Regularly maintain the floating ball valve to ensure that it is in the best working condition and reduce the failure rate.
3.Troubleshooting: If the floating ball valve fails, the after-sales service personnel will carry out on-site troubleshooting in the shortest possible time to ensure its normal operation.
4.Product update and upgrade: In response to new materials and new technologies emerging in the market, after-sales service personnel will promptly recommend update and upgrade solutions to customers to provide them with better valve products.
5. Knowledge training: After-sales service personnel will provide valve knowledge training to users to improve the management and maintenance level of users using floating ball valves. In short, the after-sales service of the floating ball valve should be guaranteed in all directions. Only in this way can it bring users a better experience and purchase safety.
