What is a Butterfly Valve Used For: Type, and Application

What is a Butterfly Valve Used For

Butterfly valves are essential components in industrial piping systems, offering efficient flow control for liquids, gases, and semi-solids. In this guide, we’ll explain what a butterfly valve is, its structural classifications, key advantages, and common applications. We’ll also explore why China butterfly valve manufacturers dominate the global market.



What is a Butterfly Valve

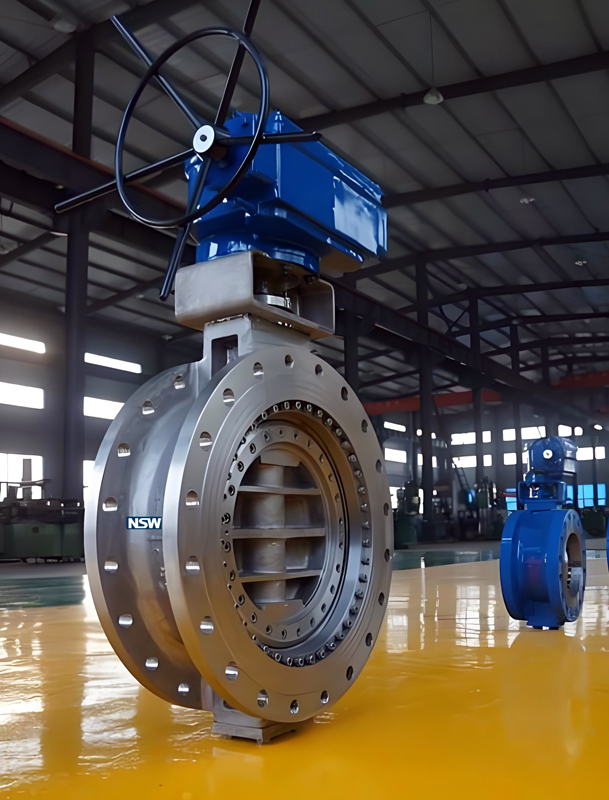

What is a Butterfly Valve Used For Type, and Application

A butterfly valve is a quarter-turn rotational motion valve designed to start, stop, or regulate flow. It consists of a circular disc (the “butterfly”) mounted on a rotating shaft. When the valve opens, the disc turns perpendicular to the flow, allowing media to pass. When closed, the disc rotates parallel to the flow, blocking it completely.

Butterfly valves are lightweight, compact, and cost-effective compared to other valve types like gate or ball valves. They are widely used in industries such as water treatment, oil and gas, chemical processing, and HVAC systems.



Structural Classifications of Butterfly Valves

Butterfly valves are categorized based on their design, materials, and connection methods:

1. By Disc Alignment

- Concentric Butterfly Valve (Resilient Seat): The simplest design, with the disc centered in the pipe bore. Ideal for low-pressure applications.

- Double Eccentric Butterfly Valve (High-Performance): The disc is offset from the pipe center, reducing wear and enabling higher pressure tolerance.

- Triple Eccentric Butterfly Valve: Features a conical disc seating surface for zero leakage in extreme conditions (e.g., high temperatures/pressures).



2. By Material

- Body Materials: Cast iron, stainless steel, ductile iron, PVC, or nickel alloys.

- Seat Materials: EPDM, Viton, PTFE (for chemical resistance).



3. By Connection Type

- Wafer Butterfly Valves: Fitted between pipe flanges.

- Lug Butterfly Valves: Threaded inserts for bolt connections.

- Flanged Butterfly Valve: Integrated flanges for direct piping.



Advantages of Butterfly Valves


Butterfly valves are favored globally for their:

- Compact Design: Requires minimal installation space.

- Quick Operation: 90-degree rotation enables fast opening/closing.

- Cost-Effective: Lower material and maintenance costs than gate/globe valves.

- Versatility: Suitable for large pipe diameters and diverse media.

- Low Pressure Drop: Minimal flow resistance when fully open.

Leading butterfly valve manufacturers in China optimize these benefits using advanced manufacturing techniques.



What is a Butterfly Valve Used For

Butterfly valves serve critical roles across industries:

1. Water & Wastewater Treatment

- Control water flow in pipelines, pumps, and tanks.

- Used in filtration, distribution, and drainage systems.



2. Oil & Gas

- Regulate crude oil, natural gas, and refined products.

- Triple eccentric valves handle high-pressure pipelines.



3. Chemical Processing

- PTFE-lined valves manage corrosive fluids.



4. HVAC Systems

- Balance heating/cooling media in commercial buildings.



5. Food & Beverage

- Sanitary valves ensure hygienic processing.



6. Fire Protection

- Automatic valves activate sprinkler systems.





Why Choose China Butterfly Valve Manufacturers?

China is a global hub for butterfly valve factories, offering:

- Cost Efficiency: Competitive pricing due to large-scale production.

- Customization: Tailored designs for specific applications.

- Quality Compliance: ISO-certified processes and international standards (API, AWWA).

- Fast Delivery: Robust logistics networks for global shipments.

When sourcing valves, prioritize China butterfly valve suppliers with proven expertise and after-sales support.



Conclusion

Understanding what a butterfly valve is used for helps industries optimize flow control systems. With their structural versatility, cost savings, and reliability, butterfly valves remain indispensable. For durable and affordable solutions, partnering with a trusted butterfly valve manufacturer in China ensures access to cutting-edge technology and superior performance.
